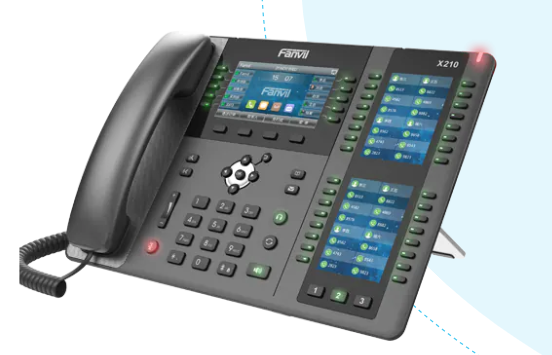

Fanvil IP enterprise IP phone is designed for business managers and busy office professionals to streamline communication and enhance collaboration with its HD voice, 20 SIP lines, up to 106 DSS keys, built-in Bluetooth, WiFi connectivity, IP camera/SIP video door phone integration, codec H.264 support for receiving video calls and more.

Features

• 20 SIP lines, 3-way conference
• HD audio on speakerphone and handset
• 4.3” main color display
• 2 x 3.5” side color displays for DSS keys
• Up to 106 DSS keys (42 tri-colored physical keys)
• Dual Gigabit ports, integrated PoE
• Built-in Bluetooth
• WiFi connectivity via WiFi dongle
• Video codec H.264 support for receiving video calls
• Supports EHS headset
• Stand with two adjustable angles of 40 and 50 degrees

Specifications

Generic

• 20 SIP lines
• HD Voice
• Support receiving video call
• PoE enabled
• 3 LCDs (main + DSS)
• Handset, hands-free, headset mode
• Intelligent DSS keys
• Optional external power supply

Phone

• Local phonebook (2,000 entries)
• Remote phonebook (XML/LDAP, 2,000 entries)
• Call logs (in/out/missed, 1,000 entries
• Black/white list call filtering
• Screen saver
• Voice message waiting indication (VMWI)
• Programmable DSS/soft keys
• Network time synchronization
• Built-in Bluetooth 2.1: support Bluetooth headset
• Support WiFi dongle
• Support Poly (Plantronics) wireless headset via APD-80 EHS cable
• Support Jabra wireless headset via Fanvil EHS20 EHS cable)
• Support recording via flash drive or server recording
• Action URL/Active URI
• uaCSTA

Call Features

• Call out/answer/reject
• Mute/unmute (microphone)
• Call hold/resume
• Call waiting
• Intercom
• Caller ID display
• Speed dial
• Anonymous call (hide caller ID)
• Call forwarding (always/busy/no answer)
• Call transfer (attended/unattended)
• Call parking/pick-up (depending on server)
• Redial
• Do-not-disturb
• Auto-answering
• Voice message (on server)
• 3-way conference
• Hot line
• Hot desking

Video

• Video codec: H.264
• Video call resolution: QCIF/CIF/VGA

Audio

• HD voice microphone/speaker (handset/hands-free, 0-7KHz frequency response)
• HAC handset
• Wideband ADC/DAC 16KHz sampling
• Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband codec: G.722, AMR-WB, Opus
• Full-duplex acoustic echo canceller (AEC)
• Voice activity detection (VAD)/comfort noise generation(CNG)/background noise estimation (BNE)/noise reduction (NR)
• Packet loss concealment (PLC)
• Dynamic adaptive jitter buffer up to 300ms
• DTMF: in-band, out-of-band - DTMF-relay (RFC2833)/SIP INFO

Networking

• Physical: 10/100/1000Mbps Ethernet, dual bridged port for PC bypass
• IP mode: IPv4/IPv6/IPv4 & IPv6
• IP configuration: static/DHCP/PPPoE
• Network access control: 802.1x
• VPN: L2TP/Open VPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP 2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Maintenance

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export/import
• Phonebook import/export
• Firmware upgrade
• Syslog

Physical

• Main LCD x1: 4.3 inch (480x272) color-screen LCD
• DSS key-mapping LCD x2: 3.5 inch (320x480) color-screen LCD
• Keypad: 77 keys, including: 4 soft keys, 6 function keys (hold, call forward, phonebook, MWI, headset, redial), 4 navigation keys, 1 OK key, 1 return key, 12 standard phone digit keys, 3 volume control keys, up/down/mute (microphone), 1 hands-free key, 42 DSS keys with tri-color LED, 3 page-switch key
• HD handset RJ9 x1
• Standard RJ9 handset wire x1
• 1.5M CAT5 Ethernet cable x1
• Back rack x1
• RJ9 port x2: handset x1, headset x1
• RJ45 port x2: network x1, PC x1 (bridged to network)
• USB2.0 port x1: standard A, connect with WiFi USB dongle or flash driver
• DC power input: 5V/2A
• Power consumption (PoE): 2.6-9W
• Power consumption (adapter): 2.4-8W
• Working temperature: 0-45C
• Working humidity: 10-95%
• Installation: desktop stand
• Color: dark gray
• Device dimensions: desktop stand (angle 1) 309 x 214 x 187mm, desktop stand (angle 2) 309 x 226 x 167mm
• Giftbox dimensions: 323 x 301 x 71mm
• Outer CTN dimensions: 624 x 383 x 348mm (10 pcs)
